Rename Sheet Dynamic Action

About

The Rename Sheet Package Action is a crucial feature within automated workflows that allows for the seamless renaming of Excel sheets within a workbook. This action is particularly useful when managing dynamic Excel files, where sheets need to be renamed to reflect changes in data, project phases, or reporting periods. Automating the renaming of sheets ensures accuracy, consistency, and organization in Excel workbooks, making it easier to navigate and manage information efficiently.

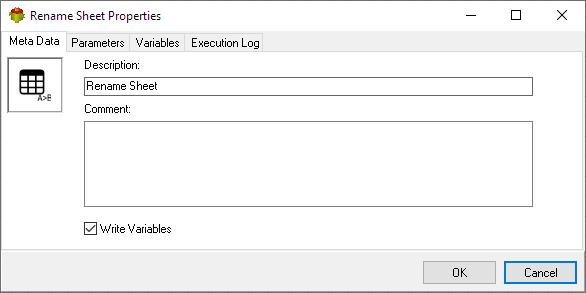

Metadata tab

1. The Write Variables option ensures that the “Package Action” logs the variable values into the “Action vars before log file” before the action is executed and logs the updated variable values into the “Action vars after log file” after the action completes.
2. This option is typically used for debugging and is not recommended in a production environment.
3. It can be globally disabled through the options dialog .

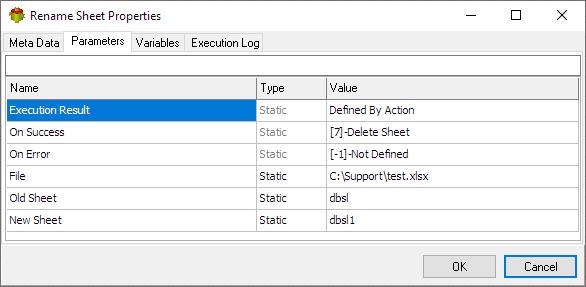

Parameters tab

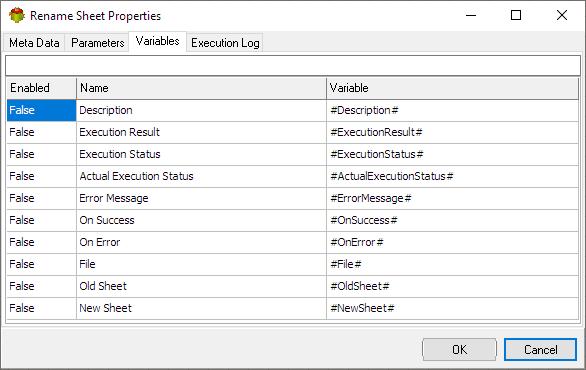

Variables tab

The Variables tab defines the variables to be updated during the action’s execution.

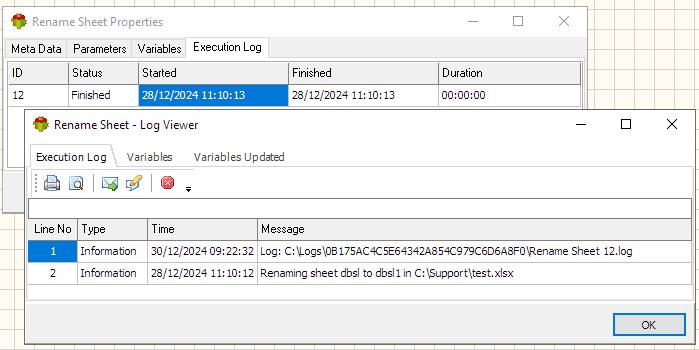

Execution log tab

The Execution log tab is populated after the action is executed. Double click on the row to view the log.

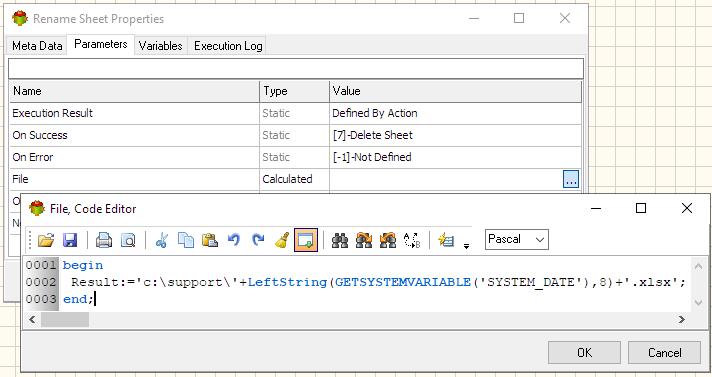

Example: Calculated Excel File Name

Pascal

begin
 Result:='c:\support\'+LeftString(GETSYSTEMVARIABLE('SYSTEM_DATE'),8)+'.xlsx';
end;

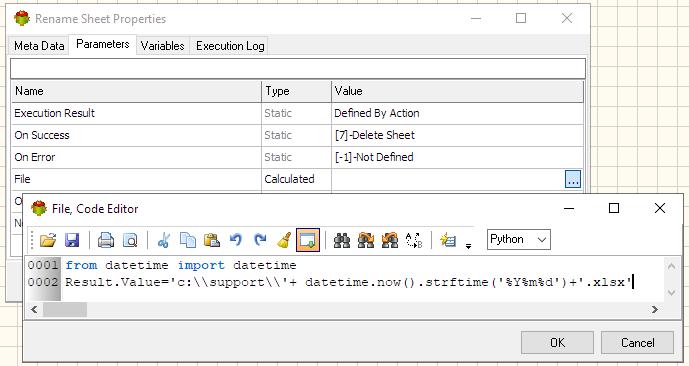

Python

from datetime import datetime
Result.Value='c:\\support\\'+ datetime.now().strftime('%Y%m%d')+'.xlsx'

Related Actions

1. Check Excel File Action
2. Merge Excel Files Action
3. Change Excel File Extension Action
4. Set Excel Cell Color Action
5. Set Excel Cell Value Action
6. Read Excel Cell Value Action
7. Add Sheet Action
8. Delete Sheet Action
9. Keep Sheet Action
10. Rename Sheet Action
11. Set Active Sheet Action
12. Check if sheet exists Action
13. List Sheets Action

Useful Links

• Debugging Actions
• Working With Variables

Problem description

• Excel files are received via email.
• Each file contains only one sheet.
• Sheet names vary.
• The sheet must be renamed to “DATA”.

Solution

Video Tutorial

Since each file has only one sheet, the simplest approach is to to save list of sheets into a file, store it in a variable, and use ths variable as Old Sheet parameter
