Archive Legacy Action

About

The Archive Action works with compressed files. It can be used to backup log files, as in the following example, although compression can be used when sending attachments via email when saving space on servers, and so on.

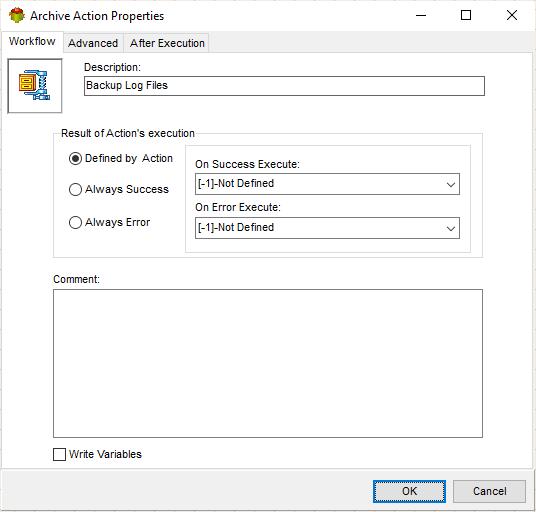

Workflow tab

1. The Write Variables option ensures that the “Package Action” logs the variable values into the “Action vars before log file” before the action is executed and logs the updated variable values into the “Action vars after log file” after the action completes.
2. It is usually used for debugging and not recommended for production environment.
3. It can be globally disabled using options dialogue

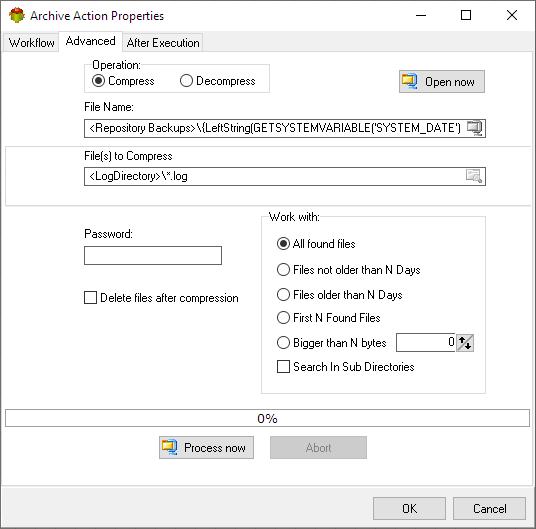

Advanced tab

With the compression facility, you can compress items and decompress them as required. The location of the zip file and the files to compress are specified, as illustrated below:

After execution tab

Specifies which variables will be set once action execution is completed

Supported decompression formats

• Zip archive (.zip;.jar;.ear;.war;.cbz;.apk;.wsz;.wal;.xpi;.crx;.dfsz;.pcv;.bsz;
  .mskin;.wmz;.ipa;.docx;.xlsx;.pptx;.sxw;.sxi;.sxt;.sxd;.sxc;.sxm;.sxg;.stw;
  .sti;.std;.stc;.odh;.odd;.odt;.odm;.ods;.ots;.odg;.otg;.odp;.otp;.odf;.odb)
• BZip2 archive (.bz2;.bzip2;.tbz2;.tbz)
• Rar archive (.rar;.r00;*.cbr)
• Arj archive (*.arj)
• Z archive (.z;.taz)
• Lzh archive (.lzh;.lha)
• 7z archive (*.7z)
• Cab archive (.cab;.fwp)
• Nsis archive (*.nsis)
• Lzma archive (*.lzma)
• Lzma86 archive (*.lzma86)
• Pe archive (.exe;.dll;.sys;.bpl)
• Elf archive (*.)
• Mach-O archive (*.)
• Udf archive (.iso;.img)
• Xar archive (.xar;.safariextz)
• Mub archive (*.)
• Hfs archive (*.hfs)
• Dmg archive (*.dmg)
• Compound archive (.msi;.msp;.doc;.xls;*.ppt)
• Wim archive (.wim;.swm)
• Iso archive (.iso;.img)
• Chm archive (.chm;.chi;.chq;.chw;.hxs;.hxi;.hxr;.hxq;.hxw;.lit)
• Split archive (*.001)
• Rpm archive (*.rpm)
• Deb archive (*.deb)
• Cpio archive (*.cpio)
• Tar archive (*.tar)
• GZip archive (.gz;.gzip;.tgz;.tpz)
• Ntfs archive (.ntfs;.img)
• Fat archive (.fat;.img)
• Mbr archive (*.mbr)
• Vhd archive (*.vhd)
• MsLZ archive (*.)
• Flv archive (*.flv)
• Swf archive (*.swf)
• APM archive (*.)
• PPMD archive (*.pmd)
• Terse Executable (*.te)
• UEFIc archive (*.scap)
• UEFIs archive (*.)
• SquashFS archive (*.squashfs)
• CramFS archive (*.cramfs)
• Ext filesystem archive (.ext;.ext2;.ext3;.ext4;*.img)
• Virtual Machine Disk archive (*.vmdk)
• Virtual Disk Image archive (*.vdi)
• QEMU Copy On Write archive (.qcow;.qcow2;*.qcow2c)
• GUID Partition Table archive (.gpt;.mbr)
• RAR v5 archive (.rar;.r00)
• IHex archive (*.ihex)
• Help 2.0 archive (.hxs;.hxi;.hxr;.hxq;.hxw;.lit)

Supported compression formats

• Zip archive (.zip;.jar;.ear;.war;.cbz;.apk;.wsz;.wal;.xpi;.crx;.dfsz;.pcv;.bsz;.mskin;
  .wmz;.ipa;.docx;.xlsx;.pptx;.sxw;.sxi;.sxt;.sxd;.sxc;.sxm;.sxg;.stw;.sti;.std;.stc;
  .odh;.odd;.odt;.odm;.ods;.ots;.odg;.otg;.odp;.otp;.odf;.odb)|.zip;.jar;.ear;.war;
  .cbz;.apk;.wsz;.wal;.xpi;.crx;.dfsz;.pcv;.bsz;.mskin;.wmz;.ipa;.docx;.xlsx;.pptx;
  .sxw;.sxi;.sxt;.sxd;.sxc;.sxm;.sxg;.stw;.sti;.std;.stc;.odh;.odd;.odt;.odm;.ods;
  .ots;.odg;.otg;.odp;.otp;.odf;.odb|
• BZip2 archive (.bz2;.bzip2;.tbz2;.tbz)
• 7z archive (*.7z)
• Tar archive (*.tar)
• GZip archive (.gz;.gzip;.tgz;.tpz)
• Swf archive (*.swf)
