Export Salesforce to Tableau TDE Automatically
Want to load your Salesforce data into Tableau for visual reporting and analytics? With Advanced ETL Processor, you can export Salesforce data directly to TDE (Tableau Data Extract) files - automatically, and without writing a single line of code.
What Is a Tableau TDE File?
TDE stands for Tableau Data Extract. It's a columnar, compressed data format used by older versions of Tableau Desktop and Tableau Server. TDE files are optimized for high-speed data analysis and offline access to data.
Why Export Salesforce to TDE?
- Build Tableau dashboards using Salesforce data
- Enable faster loading and querying with pre-extracted datasets
- Automate data refreshes and reporting pipelines
How to Export Salesforce to TDE - Step-by-Step
1. Launch Advanced ETL Processor
- Create a Salesforce Connection with login credentials and security token
- Create a Directory Connection for the exported TDE files
2. Create a New Transformation
Right-click on a transformation group and choose New to start building your workflow.
3. Configure Salesforce Reader
- Double-click to open Reader Properties
- Select the Salesforce connection
- Choose the object (e.g., Leads, Accounts, Contacts)
- Select fields to export
4. Configure TDE Writer
- Double-click to open Writer Properties
- Set the writer type to Tableau TDE
- Specify the filename (e.g.,
salesforce_data.tde) and output folder - Optionally set internal table name and metadata

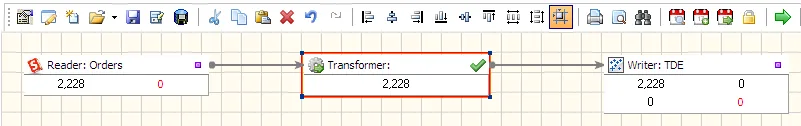

5. Map Fields and Transform
Connect fields from Salesforce to Tableau TDE columns. You can:
- Rename or reorder fields
- Apply filters or transformation logic
- Define calculated fields
6. Run the Transformation
Click Run (Green Arrow) to generate the TDE file. Open it in Tableau Desktop or publish it to Tableau Server for visualization.
Automate and Monitor
- Schedule TDE generation daily, hourly, or on trigger
- Upload to a shared drive or Tableau repository
- Enable job logging, alerts, and error handling
Where this export fits
Export Salesforce to Tableau TDE is useful when Salesforce data has to feed reports, dashboards, partner systems, audits, archives, or downstream ETL jobs. Use it when the same source query needs controlled Tableau TDE output, validation, scheduling, and logs instead of another manual file export.
Do not automate the export until the source query, output layout, file naming, overwrite rules, and failure behaviour are agreed. Automation repeats rules; it does not rescue unclear ones.
Useful links for this export
Start with the Advanced ETL Processor Enterprise overview, then download the fully functional 30-day trial. The export-data hub lists the other supported export workflows.
Video Tutorial
FAQ
Can Advanced ETL Processor export Salesforce to Tableau TDE?
Yes. Advanced ETL Processor can read Salesforce, apply transformations, write Tableau TDE, schedule the export, and log the result.
Do I need to write scripts for the export?
No scripting is required for the normal export workflow. You can configure the source, output format, validation, and schedule visually.
Can the Tableau TDE export run on a schedule?
Yes. The export package can run on a schedule, write the Tableau TDE output, archive files, and keep the same validation rules each time.
Can row counts and failures be logged?
Yes. Add logging so row counts, rejected records, run status, and error details can be reviewed after each export.
What should I check before the first production export?
Check the source query, output columns, data types, date formats, file naming, overwrite rules, archive folder, and failure handling.
Can I export only selected Salesforce records?
Yes. Use a query or filter so the export reads only the Salesforce records needed for the file, report, dashboard, archive, or partner feed.
When should I not automate the export yet?
Do not automate it until the source query, output layout, file naming, and failure handling are clear. Automation repeats rules; it does not invent them.
Can I test the export before buying?
Yes. Download the fully functional 30-day trial, build one small export, and test it with a safe sample first.
