Export Salesforce to XML Automatically
Want to export Salesforce data to structured XML files for integration, backup, or data exchange? With Advanced ETL Processor, you can create clean, well-structured XML documents from Salesforce - no Apex, scripting, or manual formatting needed.
Why Export Salesforce to XML?
- Exchange data with other systems via standard XML format
- Prepare structured data for APIs, B2B integration, or document workflows
- Automate regular Salesforce data backups in readable format
How to Export Salesforce to XML - Step-by-Step
1. Launch Advanced ETL Processor
- Create a Salesforce Connection with your credentials and security token
- Create a Directory Connection to store XML output files

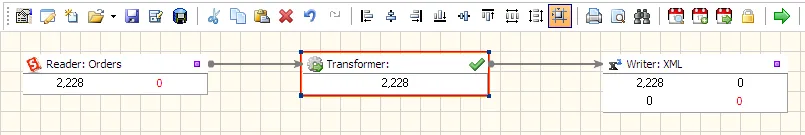

2. Create a New Transformation
Right-click on a transformation group and select New to open a fresh workflow canvas.
3. Configure Reader
- Double-click to open Reader Properties
- Select the Salesforce connection
- Choose a standard or custom object (e.g., Account, Case, Lead)
- Select the fields you want to include in the XML
4. Configure Writer
- Double-click to open Writer Properties
- Set the writer type to XML File
- Specify the output file name (e.g.,
salesforce_data.xml) - Define root, record, and table tag names
5. Map and Structure Fields
Drag and map Salesforce fields into your XML schema. Optionally:
- Rename XML nodes and apply nesting
- Add static values or calculated fields
- Apply transformations, formatting, or tag attributes
6. Run the Transformation
Click Run (Green Arrow) to generate the XML file. Open it in any browser, XML parser, or third-party system.
Automate and Schedule
- Run exports on a schedule or based on events
- Deliver XML via email, FTP, or shared folders
- Use logging and alerts for monitoring and error tracking
Where this export fits
Export Salesforce to XML is useful when Salesforce data has to feed reports, dashboards, partner systems, audits, archives, or downstream ETL jobs. Use it when the same source query needs controlled XML output, validation, scheduling, and logs instead of another manual file export.
Do not automate the export until the source query, output layout, file naming, overwrite rules, and failure behaviour are agreed. Automation repeats rules; it does not rescue unclear ones.
Useful links for this export
Start with the Advanced ETL Processor Enterprise overview, then download the fully functional 30-day trial. The export-data hub lists the other supported export workflows.
Video Tutorial
FAQ
Can Advanced ETL Processor export Salesforce to XML?
Yes. Advanced ETL Processor can read Salesforce, apply transformations, write XML, schedule the export, and log the result.
Do I need to write scripts for the export?
No scripting is required for the normal export workflow. You can configure the source, output format, validation, and schedule visually.
Can the XML export run on a schedule?
Yes. The export package can run on a schedule, write the XML output, archive files, and keep the same validation rules each time.
Can row counts and failures be logged?
Yes. Add logging so row counts, rejected records, run status, and error details can be reviewed after each export.
What should I check before the first production export?
Check the source query, output columns, data types, date formats, file naming, overwrite rules, archive folder, and failure handling.
Can I export only selected Salesforce records?
Yes. Use a query or filter so the export reads only the Salesforce records needed for the file, report, dashboard, archive, or partner feed.
When should I not automate the export yet?
Do not automate it until the source query, output layout, file naming, and failure handling are clear. Automation repeats rules; it does not invent them.
Can I test the export before buying?
Yes. Download the fully functional 30-day trial, build one small export, and test it with a safe sample first.
