Processing EDIFACT Messages

What is EDI/EDIFACT message?

EDI provides a technical basis for commercial “conversations” between two entities, either internal or external. EDI constitutes the entire electronic data interchange paradigm, including the transmission, message flow, document format, and software used to interpret the documents. EDI standards describe the rigorous format of electronic documents.

In essence, an EDI message is just a small text file that can be sent via email, HTTP or FTP

Message Example

UNH+199700001+INVOIC:D:93A:UN:EAN007'
BGM+380+424876'
DTM+137:199701111045:203'RFF+ON:334411'
RFF+AAK:23149'
NAD+BY+7080001000004::9++Hans Hansen AS+Storgata 1+TRONDHEIM++7005'
NAD+SU+7080000366767::9++Børsterud AS+Industriveien 1+OSLO++0580'
FII+RH+60731108042'
RFF+VA:FORETAKSREGISTERET NO123456789MVA'
CTA+AD+Lise Hansen'
NAD+IV+7080001000011::9++Hans Hansen Øst AS+Grenseveien 1+HEBEKK++1406'
NAD+DP+7080001000028::9++Hans Hansen Midt AS+Heggeveien 1+HEIMDAL++7080'
NAD+SF+7080000000065::9++Børsterud AS, Vareutlevering+Industriveien 1+OSLO++0580'
PAT+1'
DTM+7:19970110:102'
PAT+3'
DTM+13:19970630:102'
TOD+3++EXW'
LIN+1++7030432630011:EN'
PIA+1+7200018:SA::91'
IMD+FL++:::RULLESYSTEM'
IMD+C++TU'
QTY+47:100'
QTY+59:12'
ALI---6'
MOA+66:25000,00'
MOA+203:22000,00'
PRI+AAB:250,00'
PRI+AAA:220,00'
PAC---CT:KARTONG'
TAX+7+VAT---:::23+S'
ALC+A---+PAD:::TILBUDSRABATT'
PCD+3:10'
MOA+8:2500,00'
ALC+A---+PDE:::PALLERABATT'
MOA+8:500,00'
RTE+1:5,00'
LIN+2++7030439770710:EN'
PIA+1+2844001:SA::91'
IMD+FL++:::BØRSTER'
IMD+C++TU'
QTY+47:200'
QTY+59:36'
ALI---6'
MOA+66:2000000'
MOA+203:17900,00'
PRI+AAB:100,00'
PRI+AAA:89,50'
PAC---CT:KARTONG'
ALC+A---+PAD:::TILBUDSRABATT'
PCD+3:10'MOA+8:2000,00'
ALC+A---+QD:::KVANTUMSRABATT'
QTY+1:50'
PCD+3:2,0'
MOA+8:100,00'
UNS+S'
CNT+2:2'
MOA+66:45000,00'
MOA+203:39900,00'
MOA+260:5100,00'
MOA+131:5100,00'
MOA+NET:39900,00'
MOA+125:39900,00'
MOA+150:9177,00'
MOA+86:49077,00'
MOA+129:39900,00'
TAX+7+VAT++39900,00+:::23+S'
MOA+176:9177,00'
ALC+A---+PAD:::TILBUDSRABATT'
MOA+8:4500,00'
ALC+A---+PDE:::PALLERABATT'
MOA+8:500,00'
ALC+A---+QD:::KVANTUMSRABATT'
MOA+8:100,00'
UNT+76+199700001'

Message format

EDIFACT File	Description
UNA:+.?
UNB+UNOA:1+9377778760643:ZZ+9399700000001:ZZ+050322:1237+000000001	Message header, with sender GLN, addressee GLN, date, time & interchange number
UNH+00000000000459+ORDERS:D:96A:UN:EAN008	Message Beginning
BGM+220+10910220+92	Purchase Order Number
DTM+137:20050322:102	Order Date
DTM+2:20050322:102	Requested Delivery Date
NAD+SU+1217::92	JB Supplier Code
NAD+ST+304::92	Ship to Store Code
NAD+IV+304::92	Invoice to Store Code
LIN+1	Item Line Number
PIA+5+711719347521:VN::91	Product Identifier
QTY+21:10.0000:EA	Quantity
PRI+AAA:40.0000::TU	Price Ex GST
UNS+S	Message trailer
CNT+2:1	Control Total (total number of item lines)
UNT+14+00000000000459	Message Trailer
UNZ+1+000000001	Message End

Every data part is delimited by a single quote and prefixed with some characters and they indicate which kind of data it is. For example, LIN indicates line number

Processing EDI Data

In order to load data into the database, we need to transfer data into a more readable format

Data reader

We can’t use fixed-width format because message lengths vary
Better option to use delimited format but use the wrong delimiter so the entire line is read and passed to the next step

We can also use File System as reader connection type

Next step is to turn the data so every part will be in a separate record

UNH+199700001+INVOIC:D:93A:UN:EAN007’BGM+380+424876’DTM+137:199701111045:203’ to

UNH+199700001+INVOIC:D:93A:UN:EAN007 [Record 1]
BGM+380+424876’DTM+137:199701111045:203 [Record 2]

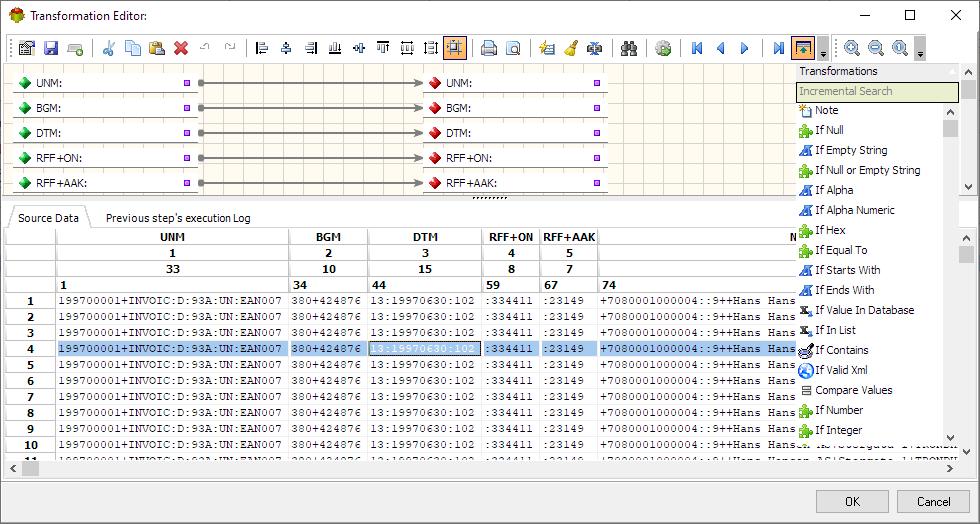

Once data is rotated we want the UNH part to go into the UNH field, BGM into the BGM field and so on.

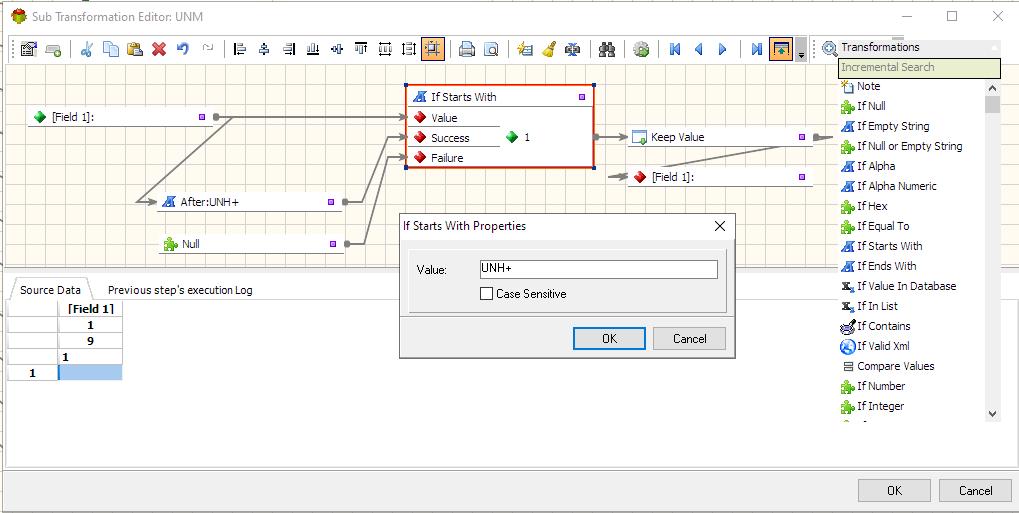

Since we have so many fields we will be using sub-transformation

The logic

When field value starts with UNH+
We pass to the next step value after UNH+
if not we pass null

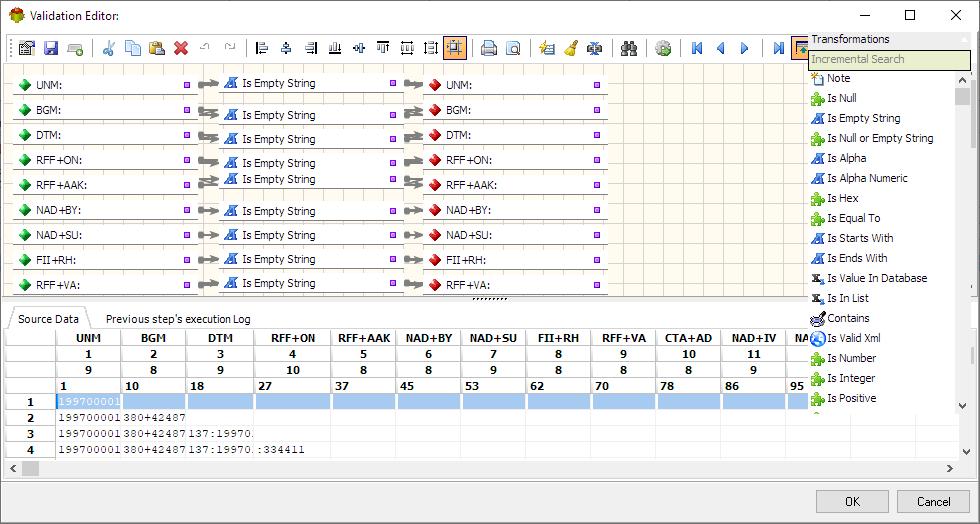

Keep value transformation allow us to fill in holes in the data\

EG it converts:

Value1 nul Value2 Null

into:

Value1 Value1 Value2 Value2
