Import XML to SQL Server Automatically
Need to move structured XML data into Microsoft SQL Server? With Advanced ETL Processor, you can fully automate the process - no T-SQL, XSLT, or manual XML parsing required. Just configure, map, and run.
What Is SQL Server?
Microsoft SQL Server is a relational database management system (RDBMS) developed by Microsoft. It is widely used in enterprise environments for handling transactional systems, reporting, and data warehousing.
SQL Server supports advanced features such as stored procedures, views, full-text search, spatial data types, and integration with Microsoft Power BI, Excel, and Azure services. It's a reliable, scalable platform for managing mission-critical data.
Why Import XML into SQL Server?
- Store API or partner XML data in relational format
- Enable reporting, auditing, and analysis using SQL queries
- Automate data pipelines from XML files into SQL Server tables
How to Import XML into SQL Server - Step-by-Step
1. Launch Advanced ETL Processor
Open the Enterprise Edition. Under Tools > Connections, create connections for:
- XML File (input)
- SQL Server Database (output)
2. Create a New Transformation
Right-click on a transformation group and select New to open a new transformation canvas.
3. Configure XML Reader
- Drag the XML Reader onto the canvas if necessary
- Double-click to open Properties
- Select the XML file you want to import
- Select Table and Record XML Tags
4. Configure SQL Server Writer
- Drag the SQL Server Writer onto the canvas if necessary
- Double-click to open Properties
- Select the SQL Server connection and target table

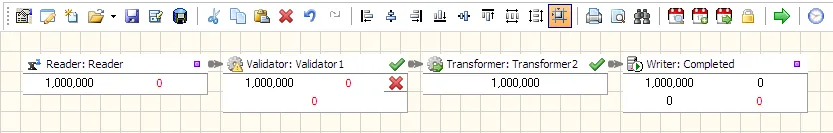

5. Map and Transform Fields
Use AutoMap or manually map XML elements to table columns. You can also:
- Reformat data (dates, numbers)
- Clean strings (trim, replace)
- Apply conditional logic and formulas
6. Run the Import
Click Execute to load data into SQL Server. Use SQL Server Management Studio (SSMS) to review the imported results.
7. Automate and Monitor
- Use the built-in scheduler for recurring imports
- Trigger on file availability or time-based intervals
- Enable error logging, rollback, and alert notifications
Where this import fits
Import XML to SQL Server is useful when XML data needs to feed SQL Server, reporting databases, operational systems, migration jobs, or downstream ETL workflows. Use it when the same import needs validation, mapping, transformations, scheduling, and logs instead of another manual load.
Do not automate the import until the source layout, target table, key fields, write mode, and failure behaviour are agreed. Automation repeats rules; it does not rescue unclear ones.
Useful links for this import
Start with the Advanced ETL Processor Enterprise overview, then download the fully functional 30-day trial. The import-data hub lists the other XML import workflows.
Business usage examples
Structured system feeds
Load XML exports into SQL Server with repeatable field mapping instead of hand-parsing nested records.
API and application integration
Import XML payloads into SQL Server so reports and downstream workflows can use relational data.
Scheduled XML processing
Validate XML files, route bad records, and write clean rows into SQL Server with clear logs.
Video Tutorial
FAQ
Can Advanced ETL Processor import XML to SQL Server?
Yes. Advanced ETL Processor can read XML, map fields, validate data, write to SQL Server, and log the import.
Do I need to write scripts for the import?
No scripting is required for the normal import workflow. You can configure the reader, writer, mapping, validation, and schedule visually.
Can the XML import run on a schedule?
Yes. The package can run on a schedule, process matching XML files, archive originals, and write rows to SQL Server with the same validation rules each time.
Can imported data be transformed before loading?
Yes. You can clean values, convert data types, calculate fields, split columns, and apply lookup rules before writing to the target.
Can bad rows be logged or rejected?
Yes. Add validation rules so rejected rows, failed files, row counts, and error details are visible after each run.
What should I check before the first production import?
Check source layout, target table, key fields, data types, date formats, write mode, archive folder, and failure handling.
When should I not automate the import yet?
Do not automate it until the source layout, target table, key fields, and bad-row handling are clear. Automation repeats rules; it does not invent them.
Can I test the import before buying?
Yes. Download the fully functional 30-day trial, build one small import, and test it with a deliberately awkward sample file.
