Export SQL Server to XML Automatically
Need to export SQL Server data to structured XML format? Advanced ETL Processor allows you to automate the entire process - without using SSIS, XML PATH queries, or writing a single line of code.
Why Export SQL Server Data to XML?
- Share data with systems that require XML input
- Integrate SQL Server with web services or APIs
- Create portable data backups in a human-readable format
How to Export SQL Server to XML - Step-by-Step
1. Launch Advanced ETL Processor
- Create a SQL Server Connection for your source data
- Create a Directory Connection for the XML output
2. Create a New Transformation
Right-click a transformation group and select New to begin designing your dataflow.
3. Configure Reader
- Double-click to open Reader Properties
- Select your SQL Server connection
- Choose a table or write a custom SQL query
- Preview and verify the data structure
4. Configure Writer
- Double-click to open Writer Properties
- Set the target type to XML
- Choose the destination directory and file name (e.g. export.XML)
- Define the root and record tags
- Define Fields
5. Map and Transform Fields
Match SQL Server fields to XML elements or attributes. You can:
- Rename XML tags
- Group nested elements
- Apply formatting or data transformation

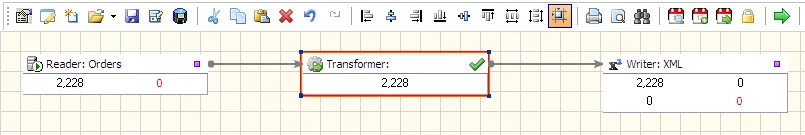

6. Run the Transformation
Click Run (Green Arrow) to generate the XML file. You can open it directly or load it into other systems.
Automation and Output Options
- Schedule XML exports at fixed intervals
- Upload XML to FTP or email it automatically
- Log execution results and send alerts on failure
Where this export fits
Export SQL Server to XML is useful when SQL Server data has to feed reports, dashboards, partner systems, audits, archives, or downstream ETL jobs. Use it when the same source query needs controlled XML output, validation, scheduling, and logs instead of another manual file export.
Do not automate the export until the source query, output layout, file naming, overwrite rules, and failure behaviour are agreed. Automation repeats rules; it does not rescue unclear ones.
Useful links for this export
Start with the Advanced ETL Processor Enterprise overview, then download the fully functional 30-day trial. The export-data hub lists the other supported export workflows.
Video Tutorial
FAQ
Can Advanced ETL Processor export SQL Server to XML?
Yes. Advanced ETL Processor can read SQL Server, apply transformations, write XML, schedule the export, and log the result.
Do I need to write scripts for the export?
No scripting is required for the normal export workflow. You can configure the source, output format, validation, and schedule visually.
Can the XML export run on a schedule?
Yes. The export package can run on a schedule, write the XML output, archive files, and keep the same validation rules each time.
Can row counts and failures be logged?
Yes. Add logging so row counts, rejected records, run status, and error details can be reviewed after each export.
What should I check before the first production export?
Check the source query, output columns, data types, date formats, file naming, overwrite rules, archive folder, and failure handling.
Can I export only selected SQL Server records?
Yes. Use a query or filter so the export reads only the SQL Server records needed for the file, report, dashboard, archive, or partner feed.
When should I not automate the export yet?
Do not automate it until the source query, output layout, file naming, and failure handling are clear. Automation repeats rules; it does not invent them.
Can I test the export before buying?
Yes. Download the fully functional 30-day trial, build one small export, and test it with a safe sample first.
