Export PostgreSQL to Tableau Hyper Automatically
Need to feed your PostgreSQL data into Tableau dashboards using the modern Hyper format? With Advanced ETL Processor, you can export PostgreSQL tables or queries to Tableau Hyper files automatically - with no coding or Tableau SDK required.
What Is a Tableau Hyper File?
Hyper is Tableau's high-performance in-memory data engine format, designed to replace the legacy TDE format. Hyper files offer faster query speeds, better compression, and support for large datasets. They’re ideal for sharing data across Tableau Desktop, Server, or Tableau Cloud.
Why Use PostgreSQL with Tableau?
PostgreSQL is a robust, open-source relational database known for performance, reliability, and extensibility. Exporting PostgreSQL data to Hyper allows business teams to visualize live data snapshots in Tableau without needing direct access to the database.
Why Export PostgreSQL to Hyper?
- Enable real-time Tableau dashboard updates
- Share Hyper files offline or via Tableau Server
- Combine data from PostgreSQL with other sources in Tableau
How to Export PostgreSQL to Tableau Hyper - Step-by-Step
1. Launch Advanced ETL Processor
- Create a PostgreSQL Connection with host, port, user, and database details
- Create a Directory Connection to save the resulting Hyper file

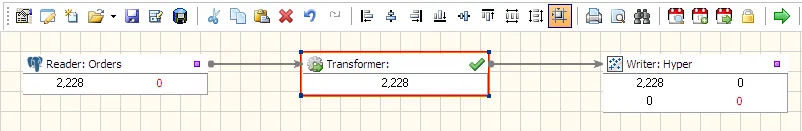

2. Create a New Transformation
Right-click a transformation group and select New to open the dataflow canvas.
3. Configure Reader
- Double-click to open Reader Properties
- Select the PostgreSQL connection and choose a table or custom query
- Preview and select the fields to export
4. Configure Writer
- Double-click to open Writer Properties
- Set output format to Hyper
- Specify the filename, target directory, and table name
5. Map and Format Fields
- Link PostgreSQL fields to Hyper columns
- Apply transformations, renaming, and formatting if needed
6. Run the Transformation
Click the Run button (Green Arrow) to generate the Hyper file. You can open it in Tableau Desktop or publish it to Tableau Server/Cloud.
Automate and Schedule
- Run exports on a schedule (e.g., daily, hourly)
- Trigger based on file events or database conditions
- Enable logs, error handling, and notifications
Where this export fits
Export PostgreSQL to Tableau Hyper is useful when PostgreSQL data has to feed reports, dashboards, partner systems, audits, archives, or downstream ETL jobs. Use it when the same source query needs controlled Tableau Hyper output, validation, scheduling, and logs instead of another manual file export.
Do not automate the export until the source query, output layout, file naming, overwrite rules, and failure behaviour are agreed. Automation repeats rules; it does not rescue unclear ones.
Useful links for this export
Start with the Advanced ETL Processor Enterprise overview, then download the fully functional 30-day trial. The export-data hub lists the other supported export workflows.
Video Tutorial
FAQ
Can Advanced ETL Processor export PostgreSQL to Tableau Hyper?
Yes. Advanced ETL Processor can read PostgreSQL, apply transformations, write Tableau Hyper, schedule the export, and log the result.
Do I need to write scripts for the export?
No scripting is required for the normal export workflow. You can configure the source, output format, validation, and schedule visually.
Can the Tableau Hyper export run on a schedule?
Yes. The export package can run on a schedule, write the Tableau Hyper output, archive files, and keep the same validation rules each time.
Can row counts and failures be logged?
Yes. Add logging so row counts, rejected records, run status, and error details can be reviewed after each export.
What should I check before the first production export?
Check the source query, output columns, data types, date formats, file naming, overwrite rules, archive folder, and failure handling.
Can I export only selected PostgreSQL records?
Yes. Use a query or filter so the export reads only the PostgreSQL records needed for the file, report, dashboard, archive, or partner feed.
When should I not automate the export yet?
Do not automate it until the source query, output layout, file naming, and failure handling are clear. Automation repeats rules; it does not invent them.
Can I test the export before buying?
Yes. Download the fully functional 30-day trial, build one small export, and test it with a safe sample first.
