Receive RabbitMQ Message Dynamic Action

About

RabbitMQ is the most widely deployed open-source message broker.

With tens of thousands of users, RabbitMQ is one of the most popular open-source message brokers. From T-Mobile to Runtastic, RabbitMQ is used worldwide at small startups and large enterprises. RabbitMQ is lightweight and easy to deploy on-premises and in the cloud. It supports multiple messaging protocols. RabbitMQ can be deployed in distributed and federated configurations to meet high-scale, high-availability requirements. RabbitMQ runs on many operating systems and cloud environments and provides a wide range of developer tools for the most popular languages.

More information: https://www.rabbitmq.com

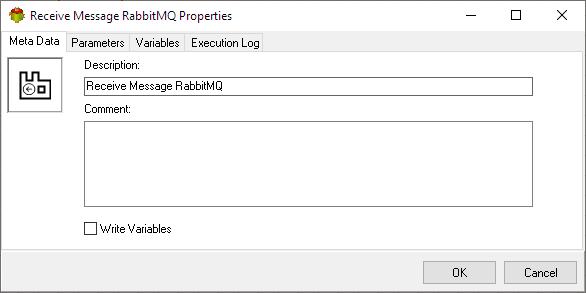

Metadata tab

1. The Write Variables option ensures that the “Package Action” logs the variable values into the “Action vars before log file” before the action is executed and logs the updated variable values into the “Action vars after log file” after the action completes.
2. This option is typically used for debugging and is not recommended in a production environment.
3. It can be globally disabled through the options dialog .

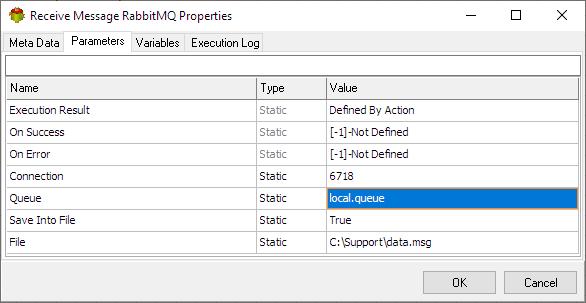

Parameters tab

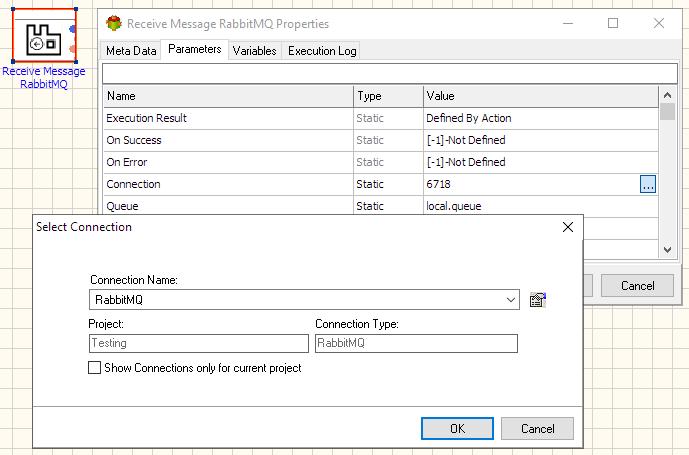

Selecting Connection

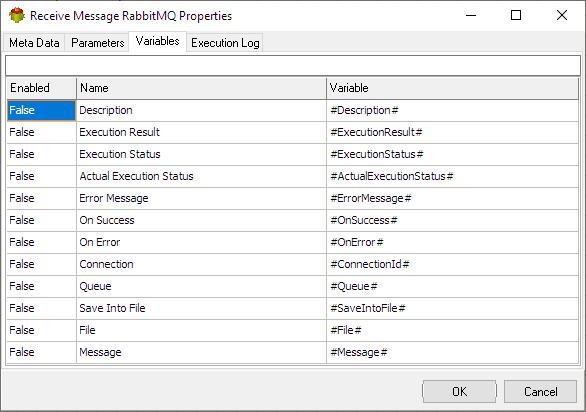

Variables tab

The Variables tab defines which variables are updated during the execution of the action.

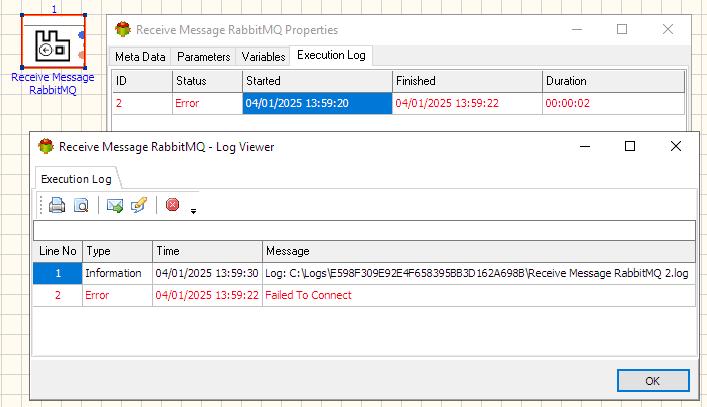

Execution log tab

The Execution Log tab is populated after the action has been executed. Double-click a row to view the detailed execution log.

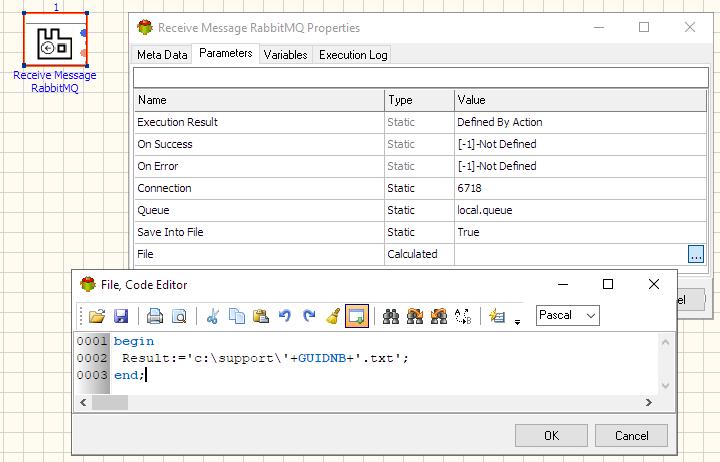

Example Generating RabbitMQ File using GUID

Pascal

begin
 Result:='c:\support\'+GUIDNB+'.txt';
end;

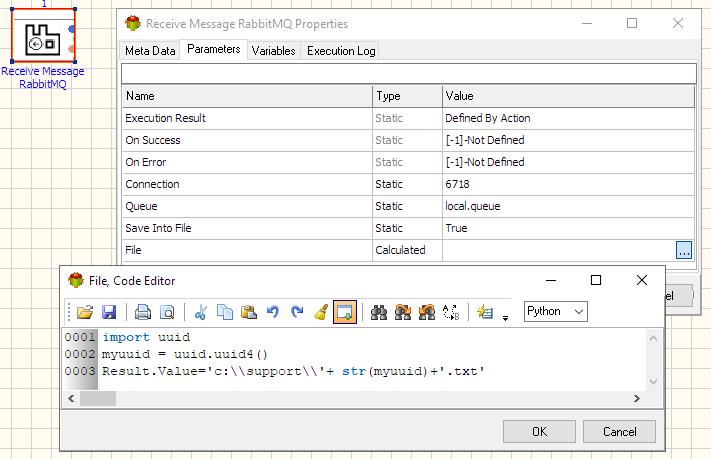

Python

import uuid
myuuid = uuid.uuid4()
Result.Value='c:\\support\\'+ str(myuuid)+'.txt'

Related Actions

1. Receive RabbitMQ Message Action
2. Send RabbitMQ Message Action

Useful Links

• How to obtain RabbitMQ Exchange name and Routing key
• Debugging Actions
• Working With Variables
