Import XML to MySQL Automatically
Need to import structured XML data into a MySQL database? With Advanced ETL Processor, you can load XML files into MySQL tables - without writing any SQL, scripts, or XSLT transformations.
What Is MySQL?
MySQL is one of the most popular open-source relational database management systems in the world. It’s widely used for web development, business applications, and data-driven services. Known for its speed, scalability, and reliability, MySQL supports standard SQL for managing structured data.
Although MySQL doesn’t natively support complex XML imports, Advanced ETL Processor bridges that gap - transforming XML into normalized tables in just a few clicks.
Why Import XML into MySQL?
- Integrate external systems or data feeds into your database
- Make XML data available for reporting and business intelligence
- Automate ETL processes for daily XML file uploads

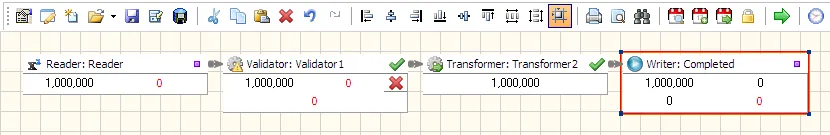

How to Import XML into MySQL - Step-by-Step
1. Launch Advanced ETL Processor
Start the Enterprise Edition. Go to Tools > Connections and configure:
- XML File connection as the source
- MySQL Writer as the destination
2. Create a New Transformation
Right-click on a transformation group and choose New to open the design canvas.
3. Configure XML Reader
- Drag the XML Reader onto the canvas if necessary
- Double-click to open Properties
- Select your XML file
- Select Table and Record XML Tags
4. Configure MySQL Writer
- Drag the MySQL Writer onto the canvas
- Double-click to open Properties
- Select your MySQL connection and target table
5. Map and Transform Fields
Use AutoMap or manually connect fields. You can:
- Change field order or names
- Convert data types (e.g., strings to integers)
- Apply trimming, formatting, or validation rules
6. Run the Import
Click Execute to begin importing the XML data into MySQL. You can run it on-demand or schedule it.
Automation and Scheduling
- Run imports hourly, daily, or on file arrival
- Watch folders, FTP servers, or email for new XML files
- Generate logs, alerts, and email notifications
Where this import fits
Import XML to MySQL is useful when XML data needs to feed MySQL, reporting databases, operational systems, migration jobs, or downstream ETL workflows. Use it when the same import needs validation, mapping, transformations, scheduling, and logs instead of another manual load.
Do not automate the import until the source layout, target table, key fields, write mode, and failure behaviour are agreed. Automation repeats rules; it does not rescue unclear ones.
Useful links for this import
Start with the Advanced ETL Processor Enterprise overview, then download the fully functional 30-day trial. The import-data hub lists the other XML import workflows.
Business usage examples
Structured system feeds
Load XML exports into MySQL with repeatable field mapping instead of hand-parsing nested records.
API and application integration
Import XML payloads into MySQL so reports and downstream workflows can use relational data.
Scheduled XML processing
Validate XML files, route bad records, and write clean rows into MySQL with clear logs.
Video Tutorial
FAQ
Can Advanced ETL Processor import XML to MySQL?
Yes. Advanced ETL Processor can read XML, map fields, validate data, write to MySQL, and log the import.
Do I need to write scripts for the import?
No scripting is required for the normal import workflow. You can configure the reader, writer, mapping, validation, and schedule visually.
Can the XML import run on a schedule?
Yes. The package can run on a schedule, process matching XML files, archive originals, and write rows to MySQL with the same validation rules each time.
Can imported data be transformed before loading?
Yes. You can clean values, convert data types, calculate fields, split columns, and apply lookup rules before writing to the target.
Can bad rows be logged or rejected?
Yes. Add validation rules so rejected rows, failed files, row counts, and error details are visible after each run.
What should I check before the first production import?
Check source layout, target table, key fields, data types, date formats, write mode, archive folder, and failure handling.
When should I not automate the import yet?
Do not automate it until the source layout, target table, key fields, and bad-row handling are clear. Automation repeats rules; it does not invent them.
Can I test the import before buying?
Yes. Download the fully functional 30-day trial, build one small import, and test it with a deliberately awkward sample file.
